High-Capacity Multi-Chamber Incinerator

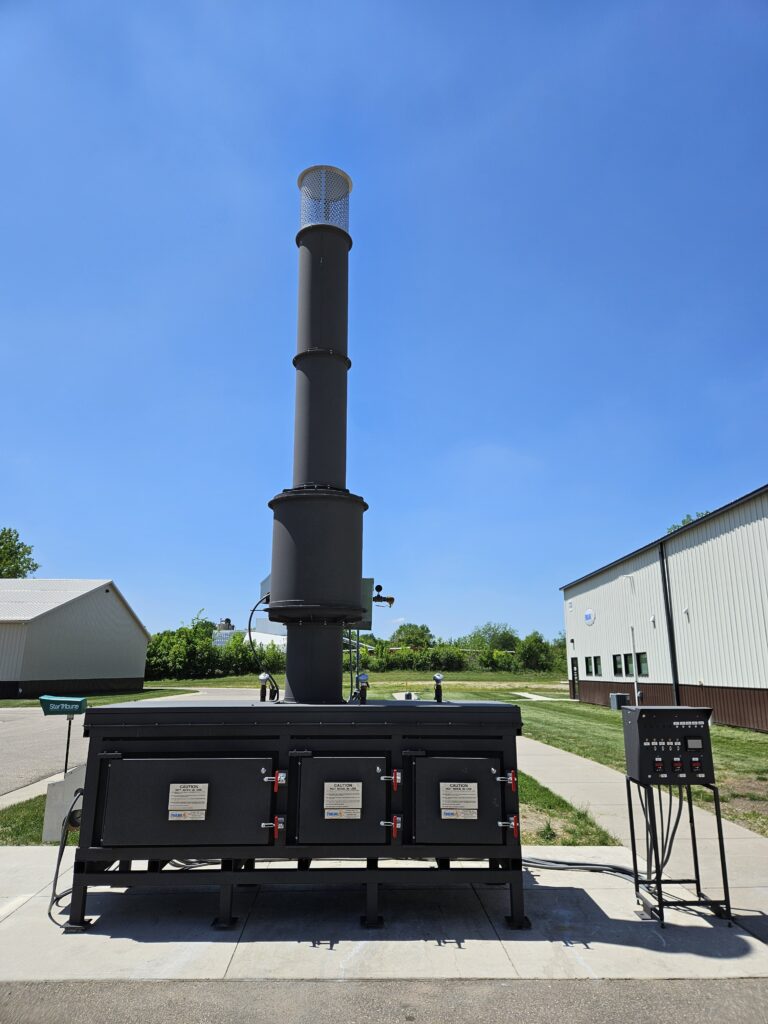

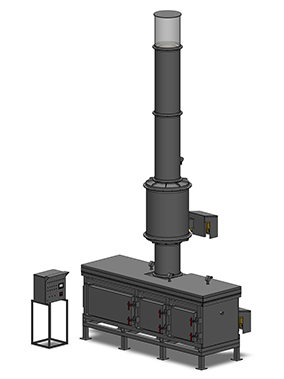

The Firelake PM50 combines three combustion chambers into one integrated system, delivering the capacity of multiple units while reducing floor space, fuel consumption, and installation requirements. Designed for large animal mortality management, agricultural operations, municipal applications, and other high-volume destruction needs, the PM50 offers a practical solution for organizations that require substantial processing capacity without the complexity of operating multiple separate units.
With one large chamber and two smaller chambers built into a single unit, the PM50 provides operational flexibility while simplifying controls, utilities, and maintenance.
Product Specification
Chamber 1: 300 lbs. (136.07 kg) 243 Chamber Capacity
Chamber 2 & 3: 100 lbs (45.35 kg) 123 (each) Chamber Capacity
50 cu. ft. (1.41 cu. m.) Chamber Volume
Features & Benefits
Capacity & Performance
- Three-chamber design combines one large chamber and two smaller chambers into a single system
- Provides processing capacity comparable to one PS25 and two C12-SC8 units
- Delivers high-volume throughput while reducing equipment footprint
- Achieves comparable burn rates to three separate units
Simple Operation & Control
- Three front-loading doors for convenient loading and ash removal
- Front-load design improves accessibility during operation and cleanout
- Single control panel manages all three chambers
- Individual manual burner On/Off switches for each chamber
- Monitor and log chamber data from one location
- Fully automatic control system with adjustable timer settings
Efficiency & Space Savings
- Uses approximately 35% less floor space than three comparable standalone units
- Uses up to 45% less fuel when operating all three chambers simultaneously
- Temperature-controlled operation helps maintain consistent performance while conserving fuel
- One integrated unit reduces overall installation requirements
Simplified Installation
- Single secondary chamber reduces installation complexity
- Requires only one roof penetration instead of multiple stack locations
- One electrical service connection
- One fuel service connection
Product Video
Complete Your Cremation Process
Cremation systems are designed to deliver reliable, efficient performance. For operations that require consistent processing of remains after each cycle, a pet cremulator can be added to complete the workflow. It processes remaining materials into a fine, uniform powder, supporting efficient handling and day-to-day operation.
